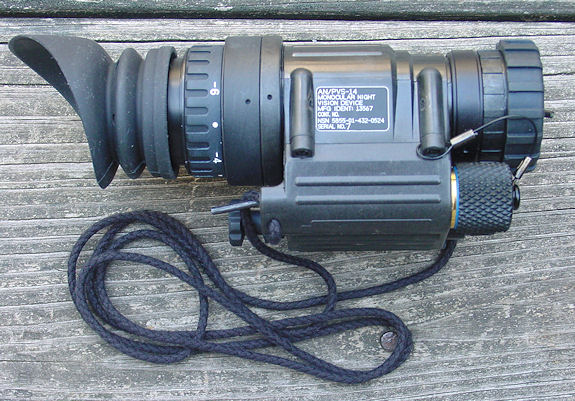

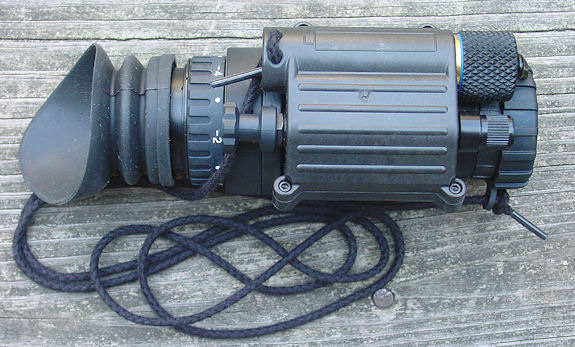

AN/PVS-14 - designed for use in a variety of
ground-based night operations, ranging from the extreme tactical to basic surveillance.
It features the superior performance of the Gen 3 PinnacleŽ image intensifier with manual
gain control to optimize resolution in variable lighting conditions for better situational

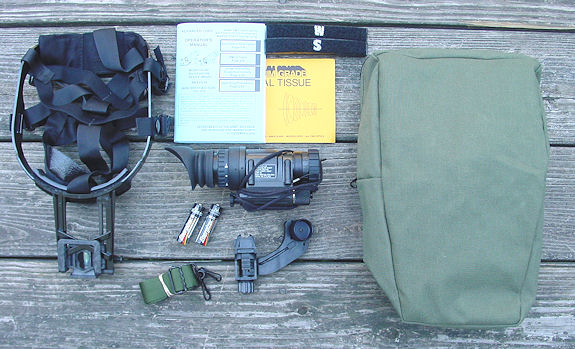

awareness. The AN/PVS-14 offers the user the most versatility of any night vision device available. The unit can be handheld for simple observation or head- or helmet-mounted for handsfree operations. The system can be weapon-mounted directly to any MIL-STD-1913 type rail system in conjunction with various optical or laser sighting systems. It can also be attached to various cameras for night time surveillance ops or gathering evidentiary data. STARDARD KIT INCLUDES: The AN/PVS 14 MONOCULAR, head mount assembly, brow pads (S,M,L), eye cup, lens paper, soft carry bag w/ shoulder strap, daylight filter, operations manual and AA battery Warranty - 5 year tube 3-year system. SPECIFICATIONS: Generation: 3 U.S. PINNACLE Resolution: 64-72 lp/mm (Typ) Film: Thin-Film Gate: Auto-Gated Brightness Gain: Adjustable from 25 to more than 3000 fL/fL Magnification: 1x Field of View: 40° Objective Lens: f/1.2 Eyepiece Lens: EFL 26 mm Diopter Adjustment: +4 to -6 Range of Focus: 25cm to infinity Voltage Required: 2.7 - 3.0 Volts Battery Type: One (1) AA battery Battery Life: Approx. 50 hrs at room temp Weight: 12.4 oz (351.53 grams) Dimensions: 4.5" (L) x 2" (W) x 2.25" (H) Operating Temperature: -51°C to +49° C Storage Temperature: -51°C to +49° C System Warranty: 5 year tube 3-year system. |
